Professional Grade Yokogawa Vortex Electromagnetic Flow Meter for Reliable Results

• Overview
• Product Description
• Company Profile
• After Sales Service
• Packaging & Shipping
• Certifications
• FAQ

Overview

Basic Info.

Model NO.	vortex Flow
Accuracy	±0.2-0.5%
Main Application	Water, Wastewater, Diesel Fuel, Fuel Oil, Nature Gas, Corrosive Liquid/Gas
Size	DN50-100
Sensor	Tube/Flange
Application	Transportation
Type	Coriolis Mass Flow Meter
Measuring Media	Liquid
Measuring Principle	Electrical Principles
Measurement Object	Closed Pipeline
Certification	JIS, DIN, ANS, GB, CE, RoHS
Response Time	1ms
ODM	Support
OEM	Support
Overload Capacity	200%Fs
Transport Package	Wooden
Specification	customized
Trademark	hks
Origin	China
HS Code	6904100000
Production Capacity	2000 PCS/Year

Product Description

Specification

* For comprehensive details, please refer to the General Specifications.

Note 1: The product's pre-shipment accuracy is ascertained by the totalized value obtained from our meticulous calibration test, conducted at our cutting-edge water actual flow test facility.

Note 2: The mirror-finished PFA lining is standard for sizes ranging from 25 to 100 mm (1 to 4 in.), and available as an option for sizes 150 to 200 mm (6 to 8 in.), as designated by the optional code PM.

Jiangsu Haoke Automation Equipment Co., Ltd. stands as a pioneering enterprise dedicated to the production of cutting-edge flow meters, liquid level meters, material level meters, pressure transmitters, alongside state-of-the-art temperature calibration, display, and recording instruments. Our commitment to excellence is evidenced by our ISO9001-2000 quality management system certification and our esteemed status as a national enterprise. As the drafting unit for the People's ***'s national metrological verification regulations on 'standard meter method flow standard device', we take pride in our role as innovators in precision measurement. Driven by a spirit of relentless pursuit for high quality and customer satisfaction, we have earned the reputation of a 'Star Enterprise' within Jiangsu Province, recognized for our unwavering dedication to providing the most competitive prices, attentive service, and superior product quality. Our accolades include being an 'Enterprise' in Jiangsu Province, a 'Contract-keeping and Credit-keeping Unit', and achieving an AA enterprise credit rating. With a robust quality assurance system and IS09001 quality system certification, we are equipped to meet the diverse needs of our customers. Our specialized electronic department leverages advanced network technology and e-commerce strategies to seamlessly integrate traditional economies and resources, enabling large-scale and rapid market expansion. Since inception, we have forged enduring and stable partnerships with manufacturers across various regions, capitalizing on our distinct advantages. Thanks to our stellar reputation and exceptional services, Jiangsu Haoke Automation Equipment Co., Ltd. has successfully cultivated long-lasting and stable business relationships with manufacturers worldwide. We pride ourselves on offering complimentary pre-sales and post-sales services, aligning with our mission to assist both our clients and ourselves. We eagerly anticipate the opportunity for sincere collaboration and groundbreaking innovation with you!

Packing & Delivery: Rest assured, your orders are meticulously packed and promptly dispatched to ensure they arrive in pristine condition. Each package is handled with the utmost care, reflecting our dedication to delivering excellence from our factory to your hands.

The electromagnetic flow meter is securely packaged in durable cartons, and for sizes from DN80 onwards, they are additionally encased in sturdy wooden boxes. This robust packaging guarantees that your product remains protected throughout its journey, arriving intact and ready for immediate use.

Lead Time: We prioritize quick turnaround times to meet your urgent needs. Most products are ready for shipment within 7 working days, given stock availability. For customized products, the timeline may extend slightly, reflecting our commitment to quality and precision.

Delivery Process: We offer a streamlined delivery process, tailored to meet your needs. Our efficient logistics ensure your products reach you swiftly and in perfect condition, no matter where you are located.

1. Utilize your own delivery account, or allow us the pleasure of choosing the most suitable delivery service for you. We are committed to providing you with flexible and convenient shipping solutions.
Typically, we employ trusted carriers such as FedEx, UPS, DHL, TNT, EMS, among others. Our partnerships with these reputable couriers ensure reliable and timely deliveries, giving you peace of mind.

2. Our delivery timeframe ranges from 2 to 7 working days, ensuring you receive your products promptly. For your convenience, some products may be available from our stock in Malaysia, further shortening delivery times.

3. We assist with the customs clearance at your destination, ensuring a hassle-free experience. Our expert team manages all necessary documentation and procedures, so you can focus on your core business activities.

Overseas Service Center Address: Our support network spans multiple countries, ensuring prompt assistance no matter where you are. We are dedicated to providing exceptional service and technical support globally.

Singapore/ Philippines/ Malaysia/ Korea/ Indonesia/ Germany/ India

Why Choose HKS Company

1) Experience unparalleled excellence with our superior quality offerings, competitively priced to suit your needs, all delivered promptly and with impeccable service. HKS Company enjoys a sterling reputation that stands as a testament to our unwavering commitment to customer satisfaction.
2) Enjoy the convenience of rapid access to our products with our fast and efficient sample delivery service.
3) Experience flexibility with our accommodating low minimum order quantities, designed to meet your diverse needs and requirements.
4) Benefit from our expedited shipping, ensuring your products are dispatched within an impressive 15 to 20 days upon payment receipt, perfectly meeting your tight schedules.
5) Rely on HKS Company to expertly manage all components necessary for utility-connected systems as well as independent homes and remote industrial sites, ensuring seamless and efficient operations wherever you are.
6) Avail of our comprehensive and knowledgeable technical support, available both before and after your purchase, ensuring a seamless experience and ultimate peace of mind.
7) Trust in our products that meet rigorous international standards, having secured ISO, RoHS, TUV, and CE certifications, providing you with a guarantee of unparalleled quality and safety.

Payment Term

1.Q: How long is the delivery?
-- Mostly within 10days
2.Q:Can I get a sample?
-- Sure, contact our sales please
3.Q:What is your MOQ?
-- 1pcs
4.Q: How about warranty time?
-- 12-18month
5.Q: How can I visit your factory?
-- Fly to Xian Yang air port, it's our pleasure to pick you up.
6.Q:How do you control your quality ?
-- We have EPR system .we control from parts, process, testing, packing ,retesting.
Every Sensor will be tested two times before reach you, after that sport test for the third time. Make sure about the quantity.

Product Description

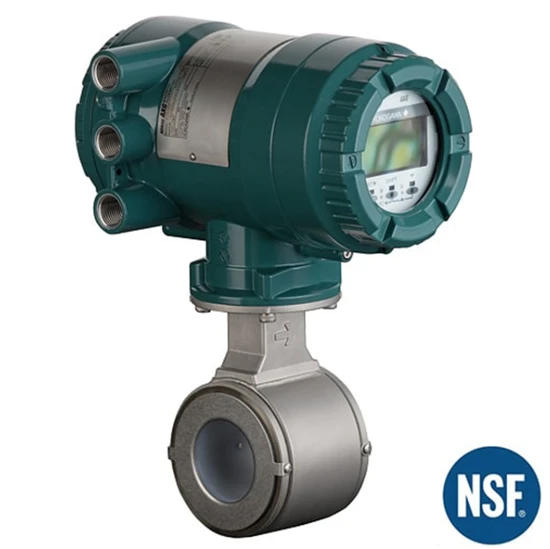

Experience the forefront of flow measurement technology with the ADMAG AXR magnetic flow meter. Masterfully engineered with an intuitive two-wire system, this device ensures a seamless and hassle-free installation process. Its groundbreaking efficiency is highlighted by an exceptionally low power consumption of merely 0.3W—an incredible 40 times lower than traditional magnetic flow meters. This significant reduction translates to substantial savings in both capital expenditure (CAPEX) and operating expenditure (OPEX), making it the premier choice for contemporary industrial applications.

Presenting the ADMAG AXR, an innovative triumph as the world's first magnetic flow meter to feature the groundbreaking 'Dual Frequency Excitation Method.' This revolutionary technology ensures unmatched stability in instrumentation performance, virtually eliminating disruptive fluid noise and guaranteeing precision and reliability at unparalleled levels.

Structure	Integral flow meter
Excitation Method	Dual frequency excitation
Nominal Pipe Size [Unit : mm (approx. inch)]	General-purpose use: 25 (1.0) to 200 (8.0) Explosion proof Type: 25 (1.0) to 200 (4.0)
Supply Voltage	Operating voltage range 14.7 to 35 V DC Two-wire system
Output Signals	Current output Digital output (One output can be selected from pulse, alarm or status outputs.)
Electrode Material	Stainless steel-JIS SUS316L (AISI 316L SS/EN 1.4404 equivalent), Hastelloy C276 equivalent, Tantalum, Platinum-iridium
Fluid Temp.	- 40 to 130 deg.C (-40 to 266 deg.F) [ depends on model type ]
Ambient Temp.	- 40 to 55 deg.C (-40 to 131 deg.F)
Accuracy	0.5% of rate (Note 1) [ depends on nominal pipe size and fluid condition ]
Fluid Conductivity	10 micro-S/cm or larger [ depends on nominal pipe size and fluid condition ]
Lining	Fluorocarbon PFA (Mirror-finished lining surface) (Note 2)
Lay Length [Unit : mm (approx. inch)]	Lay length code 1: Wafer ; size 80 (3.0) to 200 (8.0), Flange ; size 25 (1.0) to 200 (8.0) Lay length code 2: Wafer ; size 25 (1.0) to 200 (8.0)
Indicator	Full dot-matrix LCD
Operational Switch	4 magnet switches (including push switches)
Self Diagnosis	Electrode adhesion diagnosis, Coil open, etc.
Alarm Message	Alarm message with countermeasure is indicated ( English, German, French, Italian, Spanish, Japanese )
Options	Direction change of the electrical connection, Special Gaskets,

Company Profile After Sales Service

Packaging & Shipping Certifications

Payment Terms	T/T	EXW	30% T/T in advance, the balance to be paid before dispatch
		FOB
		CIF	30% T/T in advance, the balance to be paid against the copy of B/L
		CFR (C&F)
	L/C	Irrevocable L/C at sight could be accepted if amount above US $50,000.00
Delivery Time	7 to 10 working days after receiving advanced payment
